Switch - Lan

8-Port Gigabit Desktop Switch, Model: GS108 ● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards ● 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware ● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering ● Store-and-Forward switching method ● Supports 16K MAC address auto-learning & auto-aging Model GS108 Standard configurati 8 10/100/1000M RJ-45 adaptive ports Switching Capacity 16Gbps Throughput 11.9Mpps Packet Buffer 2.5M MAC Address 1K Jumbo Frame 2K Transfer Mode Store and forward MTBF 100000 hour Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) Network Medium 10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5  or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) Working Environment Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet Structure Size Product Size：138*78*25mm Product Net-Weight：0.3kg Product Gross-Weight：0.5kg Power Voltage Power Input Voltage ：AC 100-240 V Switch Input Voltage:：DC 5V

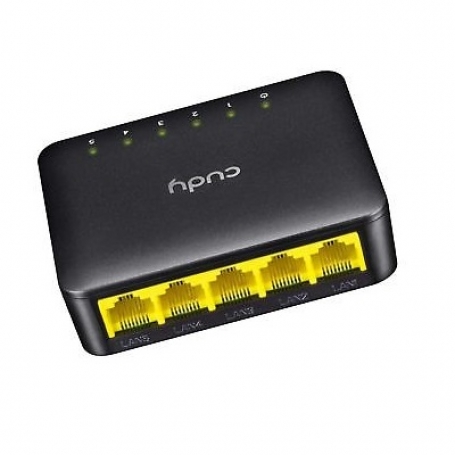

5-Port Gigabit Desktop Switch, Model: GS105D ● 5 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX ● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard ● Supports MAC address auto-learning and auto-aging ● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering ● Cudy green technology saves the power up to 85% ● Plug & Play, Desktop design Model GS105D Standards IEEE802.3 10Base-T,IEEE802.3u 100Base-TX,  IEEE802.3ab 1000Base-T,IEEE802.3az Network Media (Cable) 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5, 5e cable (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) Number of Ports 5 x 10/100/1000Mbps Auto-Negotiation ports LED Indication  Power, Link/Act LEDs Transfer Method Store-and-Forward Switching Capacity 10Gbps Power Input DC 5V /0.5A(adapter) Consumption Max2.3W Frame Filtering and Forward Rate 10Mbps: 14880pps  100Mbps: 148800pps  1000Mbps: 1488000pps Dimensions W*D*H 100mm x 69mm x 24mm Weight 75g Operating Temperatur 0°C~40°C (32°F~104°F) Storage Temperature -40°C~70°C (-40°F~158°F) Relative Humidity 10%~90%, non-condensing Storage Humidity 5%~95%, non-condensing Package Contents 1 x Power Adapter；1 x Switch；1 x User Manual
