Switch Cudy 5Port 1Gbit

(Prijs excl. btw) 16,53
20,00 20,00
x

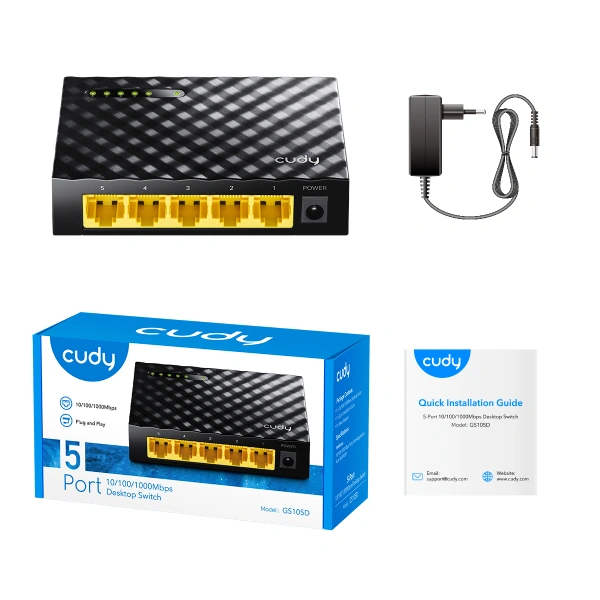

5-Port Gigabit Desktop Switch, Model: GS105D

● 5 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
● Supports MAC address auto-learning and auto-aging
● Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
● Cudy green technology saves the power up to 85%
● Plug & Play, Desktop design

Model GS105D
Standards IEEE802.3 10Base-T,IEEE802.3u 100Base-TX,
IEEE802.3ab 1000Base-T,IEEE802.3az
Network Media
(Cable)
10BASE-T: UTP category 3,4,5 cable (maximum 100m)
100BASE-Tx: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
Number of Ports 5 x 10/100/1000Mbps Auto-Negotiation ports
LED Indication  Power, Link/Act LEDs
Transfer Method Store-and-Forward
Switching Capacity 10Gbps
Power Input DC 5V /0.5A(adapter)
Consumption Max2.3W
Frame Filtering
and Forward Rate
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Dimensions W*D*H 100mm x 69mm x 24mm
Weight 75g
Operating Temperatur 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Package Contents 1 x Power Adapter;1 x Switch;1 x User Manual
